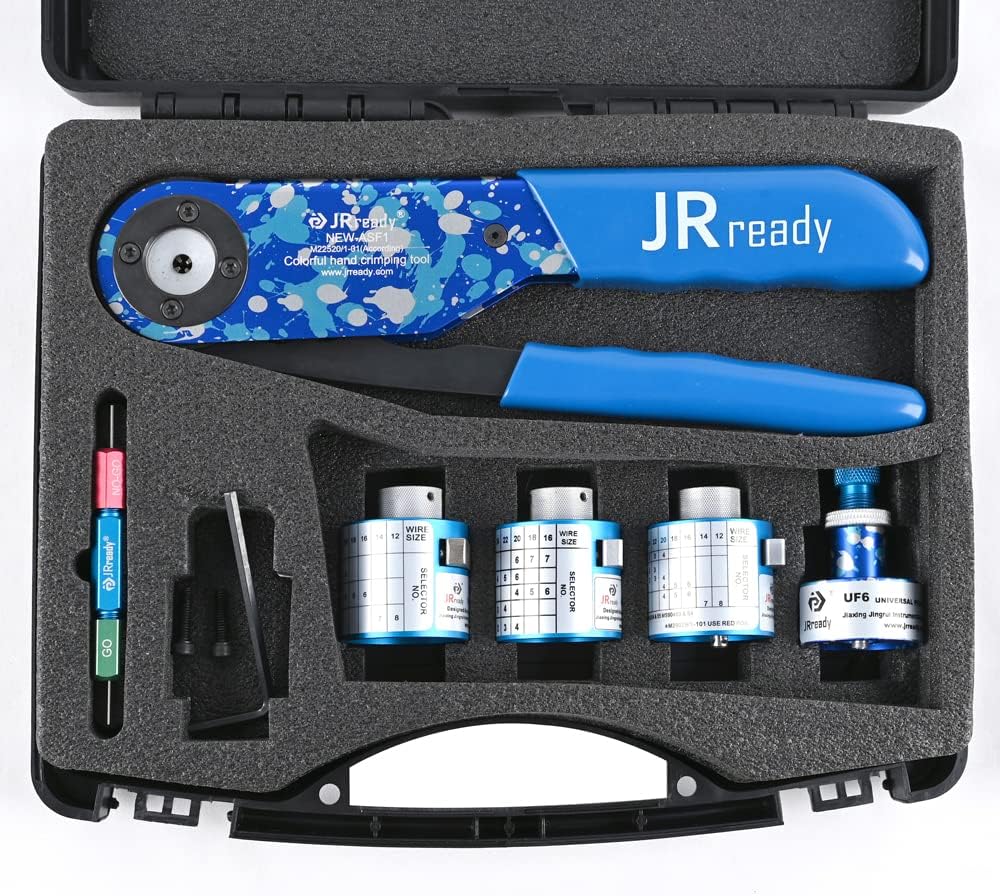

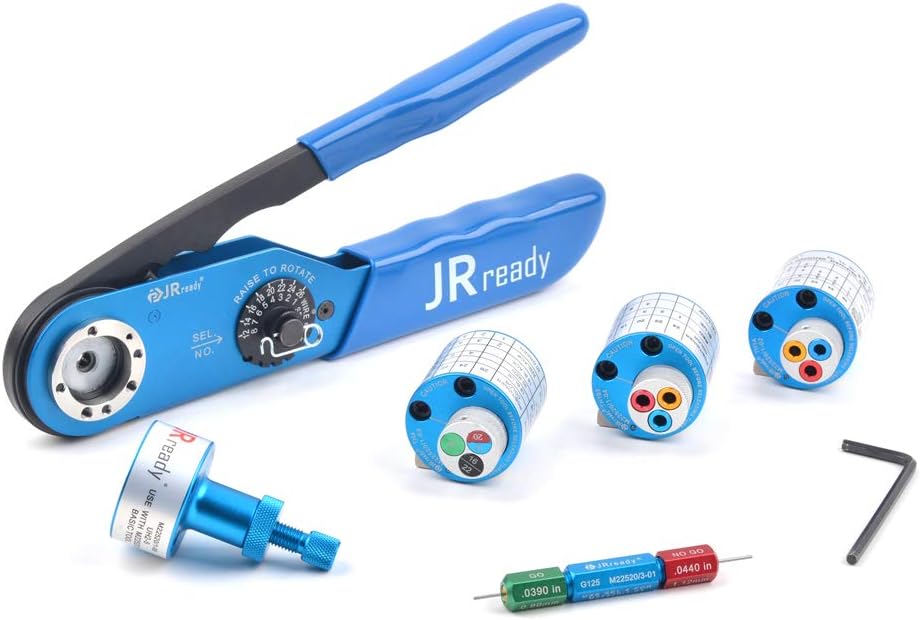

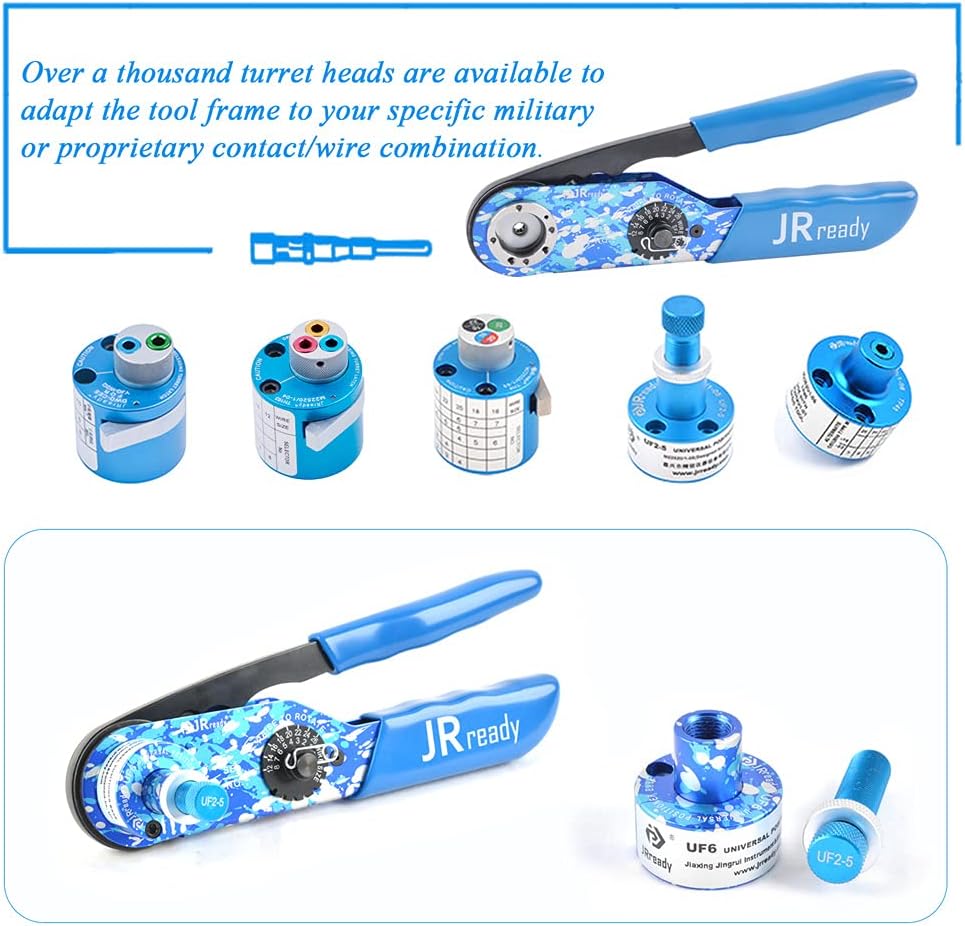

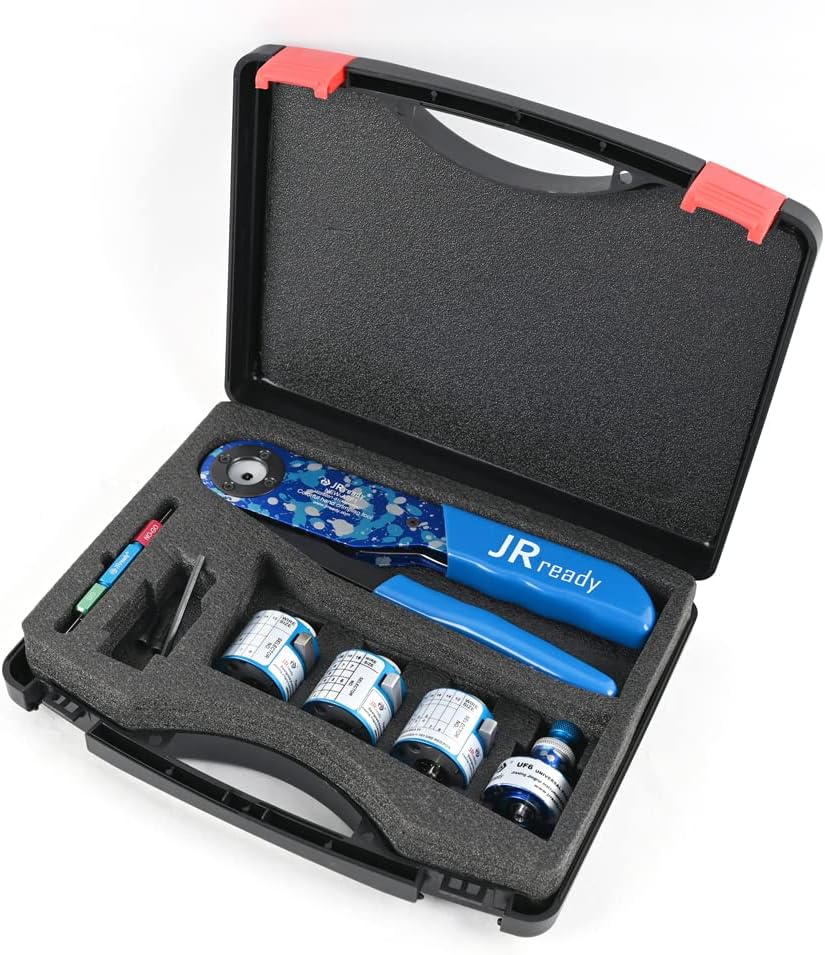

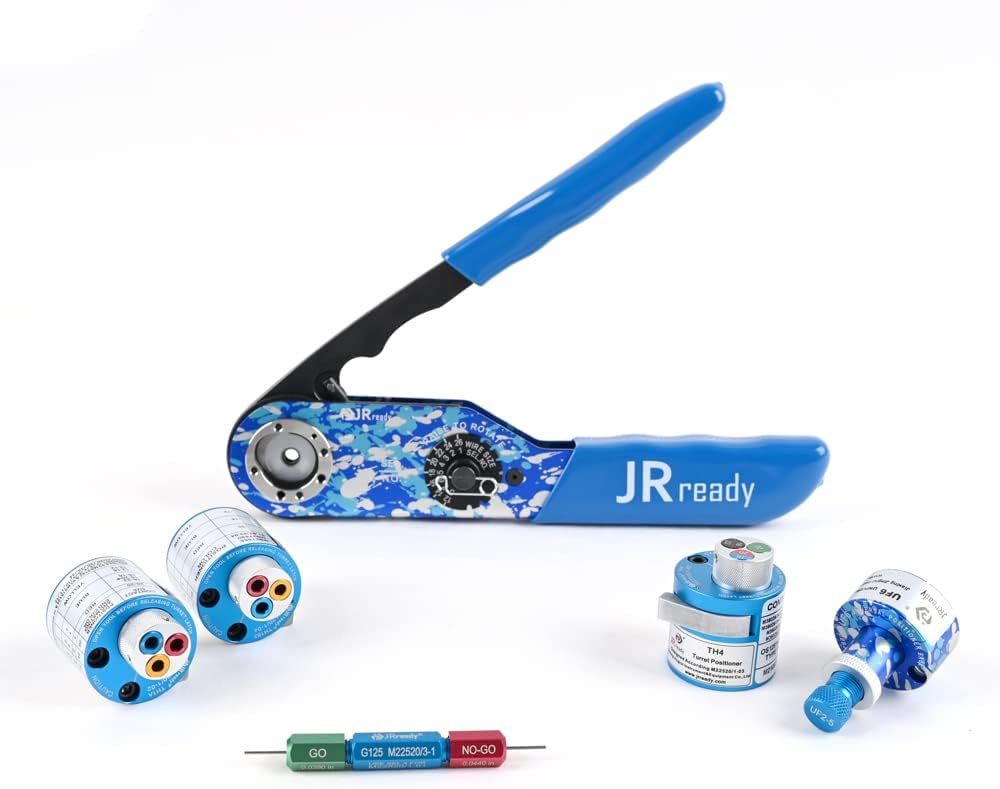

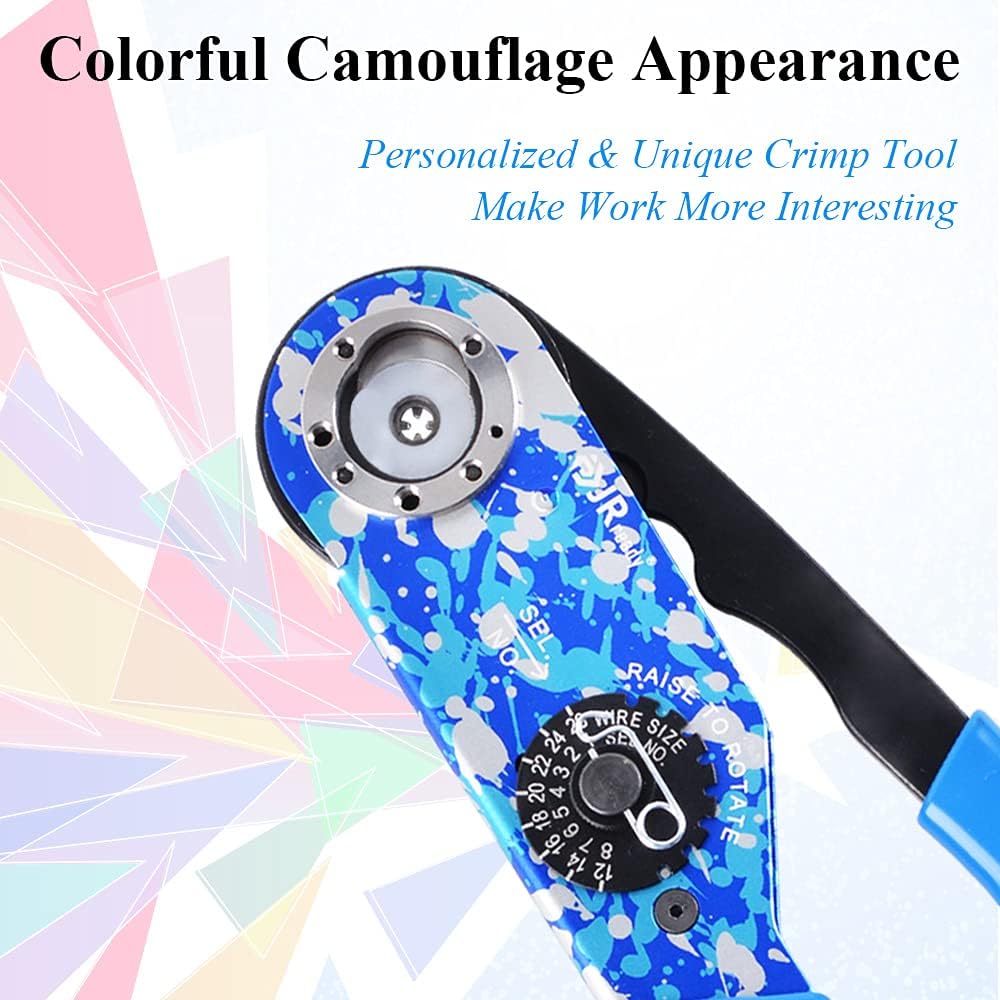

The kit included: NEW-ASF1(Hand Crimp Tool) & TH163, TH4, TH1A (Turret Head) & UF6-UF2-5 (Positioner) & G125 (Go-nogo Gage).NEW-ASF1 is compatible with the M22520/1-01 which is widely used for the crimping of wires and contacts in electronic connectors.NEW-ASF1 Uses Camouflage Blue, the pattern of each Crimper is different when it leaves the factory, to ensure that the Crimper you receive is unique!Positioner: Four M22520/1 series positioner TH1A M22520/1-02 & TH4 M22520/1-03 & TH163 M22520/1-04 & UH6-UF2-5 M22520/1-05G125 is designed according to M22520/3-1,GO: 0.039 inch; NO-GO: 0.044 inch.
crimping tool Kit for 12-26 AWG wire harness V16805
Sale price
$21.95
Regular price $106.23
Shipping calculated at checkout.

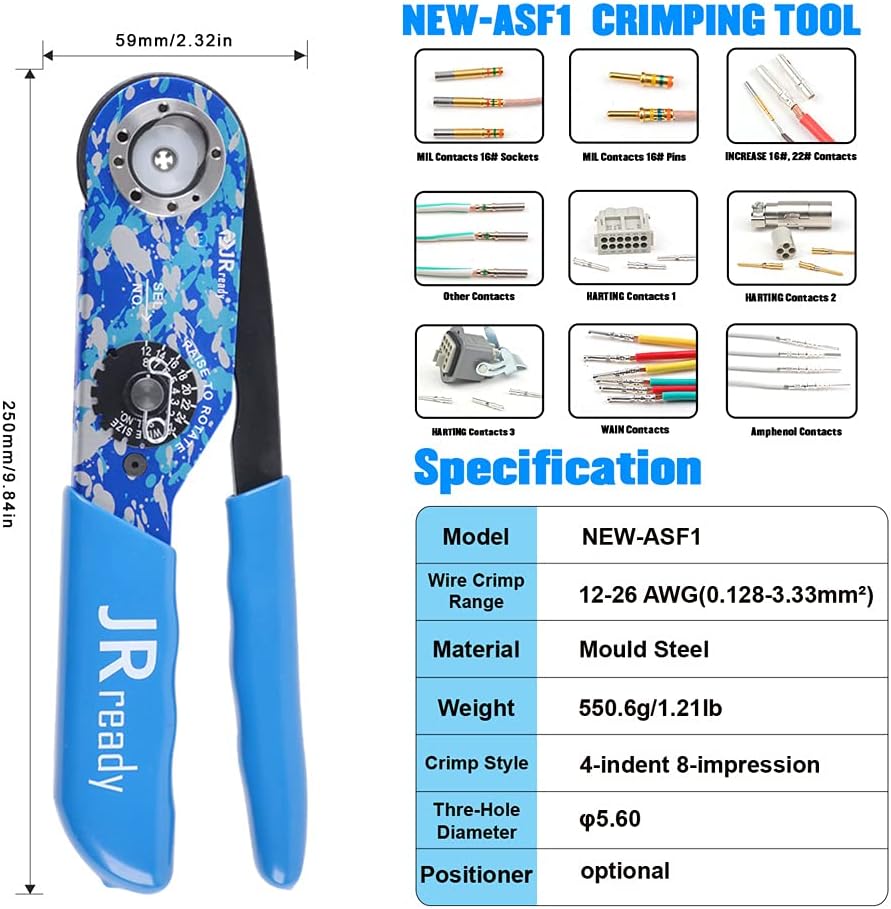

| NEW-AS1 | NEW-ASF1 | ACT-M201 | JRD-ASF1 | JRD-W2D | |
|---|---|---|---|---|---|
| MIL-Standard | M22520/1-01 | M22520/1-01 | M22520/1-01 | M22520/1-01 | M22520/1-01 |
| Wire Range | 12-26AWG | 12-26AWG | 12-26AWG | 12-26AWG | 12-26AWG |
| Thru-Hole Diameter | Φ6.35mm | Φ5.6mm | Φ6.35mm | Φ5.6mm | Φ5.6mm |
| Positioner | Adapt to TH series positioner, TP series positioner, UH series and UF5 series universal adjustable positioner | Adapt to TH series positioner, TP series positioner, UH series and UF5 series universal adjustable positioner | Adapt to TH series positioner, TP series positioner, UH series and UF5 series universal adjustable positioner | Adapt to TH series positioner, TP series positioner, UH series and UF5 series universal adjustable positioner | Adjustable fixed positioner |
| Panel color | camouflage | camouflage | Blue | Blue | Black blue |
| Version | Small version, operate comfortably with one hand | / | Small version, operate comfortably with one hand | / | / |
| GO-NO GO GAUGE | G125 | G125 | G125 | G125 | G125 |
